Fire protection vs flame retardancy: why a single additive serves both purposes

Flame retardancy vs fire protection: what do they actually mean?

The term fire protection is the overarching one. Technically, a distinction is made between preventive and defensive fire protection. Defensive fire protection is the responsibility of the fire brigade – what happens once a fire has started. Preventive fire protection, on the other hand, includes everything done in advance to prevent a fire starting in the first place or at least to stop it from spreading unchecked.

Preventive fire protection is typically divided into three areas:

• Structural fire protection: all provisions inherent in the building itself – building materials and components, fire walls, penetration seals, escape and rescue routes.
• Technical fire protection: engineered systems such as sprinkler and suppression systems, fire detection and smoke extraction systems.
• Organisational fire protection: all organisational aspects – from employee instruction to correct behaviour in the event of fire.

Flame retardancy, more precisely the use of flame retardants, is strictly speaking a tool within this larger category. A flame retardant is an additive incorporated directly into a material to lower its flammability and delay the spread of fire. So it acts in the material itself, whereas structural fire protection generally works at the component or even whole-building level. This is where most confusion arises: Flame retardancy describes how a material behaves in fire. Fire protection, on the other hand, defines the overall safety concept aimed at preventing or containing fire. One is a subset of the other – but they are not one and the same.

Two mechanisms, one aim

The truly interesting difference appears when you look at the mechanism of action. Whether an additive acts as a flame retardant within the material, or as fire protection between building components, makes a real difference physically and chemically.

Flame retardancy: The shield within the material

As a flame retardant additive, the agent is introduced directly to the material – in polyurethane foam, plastics, coatings or textiles. Its job in the event of a fire is to prevent the material itself from becoming a source of fuel.

Flame retardants can basically work in two ways. In the gas phase, they intervene in the chemical chain reactions of combustion and dilute or interrupt the combustible pyrolysis gases. In the condensed phase, they build a protective, charred layer on the surface, shielding the underlying material from fire and oxygen. This formation of an insulating layer is called intumescence, from the Latin for ‘swell up’.

An intumescent system reacts to heat by foaming up, increasing in volume and decreasing in density. It forms an insulating barrier that reduces heat transfer, impedes oxygen supply, delays ignition and minimises the formation of toxic gases. The result: the material will either not burn at all or will burn much more slowly and, ideally, self-extinguish once the ignition source is removed.

Fire protection: The bulwark against the spread

The role of the same principle in structural fire protection is quite different. Here, the aim is not to keep a material from burning, but to seal openings and voids so that fire and smoke cannot pass from one fire compartment to another.

Typical applications include cable and pipe penetration seals, fire collars and sealing tapes. In normal use, these components keep apertures for cables or pipes securely closed. However, in a fire, plastic pipes melt or cable insulation burns away – leaving gaps through which fire and smoke can freely travel. An intumescent material then expands precisely into these voids, seals them, and stops fire and smoke from spreading.

The mechanism is essentially the same, expansion and formation of an insulating layer through heat, but the objective differs: not ‘the material shall not burn’, but ‘the fire shall not breach this compartment’.

Flame retardancy and structural fire protection in direct comparison

Expandable graphite: one additive for both worlds

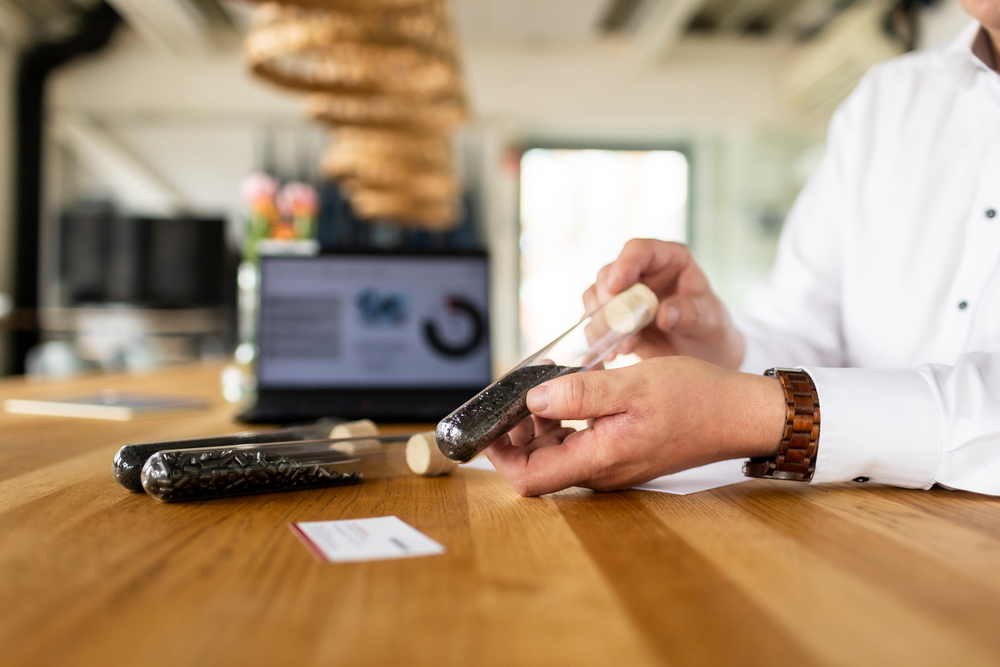

This very dual role makes expandable graphite such a versatile substance. It is a purely mineral additive, in which foreign molecules, so-called intercalates, are inserted between the carbon layers of natural graphite.

When a defined limit temperature is exceeded, these intercalates decompose, producing gases. The resulting pressure forces the graphite layers apart like a concertina: The material expands suddenly, many times over – depending on type, from 30 to several hundred times its original volume. What is left behind is a voluminous, carbon-rich protective layer directly on the surface.

This single reaction can be used for both purposes:

• As a flame retardant additive in PU foams, plastics, coatings or rubber, expandable graphite acts within the material itself. In the event of fire, it forms the intumescent protective layer, insulates the material, repels flames and limits the formation of toxic gases.
• In structural fire protection in penetration seals, collars or sealing tapes, it expands into voids, seals them, and thus prevents the spread of fire and smoke.

A crucial detail lies in the expansion temperature. This can be precisely adjusted by the quality of the expandable graphite. This is not a side issue: An additive that reacts too early during the processing of a plastic would be unusable. Newer grades of expandable graphite only activate their protective effect at higher temperatures and can therefore be used in materials processed at temperatures up to 280°C.

Why halogen-free makes all the difference

Historically, many highly effective flame retardants were based on halogens (bromine, chlorine). Although effective, these have a major drawback: in a fire, halogen-containing systems release corrosive and toxic gases, and generate heavy smoke. In fact, smoke and toxic gases are often the real danger for people in a fire, more so even than the flames. Expandable graphite, by contrast, is halogen-free, being a purely mineral additive containing no halogens and leaving no toxic residues. This is right in line with the industry-wide shift away from substances of concern toward alternatives that are REACH-compliant, long-lasting, and ideally also recyclable. For foams and technical polymers, for example, using expandable graphite does not limit recyclability – an argument that is becoming increasingly important in the light of sustainability requirements.

Another advantage is stability: Unlike additives that act in gaseous or liquid form and can migrate out of the material over time, the mineral expandable graphite remains permanently embedded in the product throughout its lifetime, ensuring enduring protection.

From engine bay to cable duct: sectors at a glance

It is exactly this combination of effectiveness, versatility and halogen-free operation that explains why expandable graphite is used in such a wide range of industries today. Sometimes it protects the material itself; sometimes it seals a compartment in a building – but the basic principle of intumescence remains the same. A look at the main areas of application shows just how broad the spectrum is:
